Product Details:
|
| Stainless Steel Ball: | 420/440 | Grade: | G10/G16/G20 |
|---|---|---|---|
| Application: | Bearing, Seals, Auto Spare Parts | Hardness: | ≤HRc62 |
| Sample: | Free Supply For You | Surface Treatment: | Mirror Polished |
| Package: | Plastic Bag+carton Box+wooden Pallet | Service: | OEM, ODM |
| Highlight: | G100 Stainless Steel Bearing Balls,G200 Stainless Steel Bearing Balls,G200 SS Steel Ball |
||

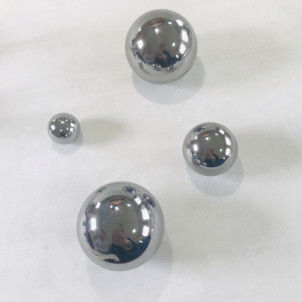

13.493mm(17/32"), Solid stainless steel metal ball for bearing, G100/G200
Introduction
Stainless steel is the abbreviation of stainless and acid-resistant steel. It is called stainless steel that is resistant to weak corrosive media such as air, steam, and water, or is stainless steel; and chemically resistant to chemical corrosion media (acid, alkali, salt, etc.) Corrosion steel is called acid-resistant steel.
Due to the difference in chemical composition between the two, their corrosion resistance is different. Ordinary stainless steel is generally not resistant to chemical media corrosion, while acid-resistant steel is generally non-corrosive. The term "stainless steel" not only refers to a single type of stainless steel, but also refers to more than one hundred industrial stainless steels. Each stainless steel developed has good performance in its specific application field. The key to success is to understand the purpose first, and then determine the correct steel grade. There are usually only six steel grades related to the application of building construction. They all contain 17-22% chromium, and better steel grades also contain nickel. The addition of molybdenum can further improve the atmospheric corrosion, especially the corrosion resistance of the chloride-containing atmosphere.
We mainly export stainless steel balls (201, 304, 316, 420, 420C, 440C, 430), and also produce chrome steel balls (AISI52100, 100CR6, GCR15), carbon steel balls (1015, 1010, 1045, 1085) and various other material of steel ball.
The relationship between the main chemical composition and the performance of stainless steel.
1. Carbon can increase hardness and strength, high content will reduce its ductility and corrosion resistance
2. Chromium can increase corrosion resistance, oxidation resistance, refine the grain, increase strength, hardness and wear resistance.
3. Nickel can increase high temperature strength, corrosion resistance, and reduce the rate of cold work hardening
4. Molybdenum increases strength and has excellent corrosion resistance to oxides and seawater
5. Copper is good for cold forming and reduces magnetic properties
6. Mn is mainly used to reduce the magnetic properties of the material, but the content should not be too high.
Details
| Product name | forged solid stainless steel ball for bearing |
| Meterial | 304 316 420 440 stainless steel ball for bearing |
| Size | Ф0.3 – Ф100mm |
| Other size | Customized |
| Surface treatment | Mirror polished |
| Application |
Medical equipment, chemical industry, aviation, aerospace, plastic hardware: perfume bottle, sprayer, valve, nail polish, Motor, switch, electric iron, washing machine, refrigerator, air conditioner, medicine, auto parts, bearing, instrument, milk bottle. |
| Stainless steel ball | Grade | Property | Application |
| 440C(9Cr18Mo) | G10-G500 | Martensitic steel, high precision, hardness of 56-58 degrees, magnetic, good corrosion resistance, strong rust resistance and wear resistance | Bearings, stamping/hydraulic parts, valves, aerospace, seals, refrigeration equipment, high-precision instruments, etc. |
| 420(3Cr13) | G10-G500 | Martensitic steel, commonly known as stainless iron, has a hardness of 51-53 degrees, is magnetic, has good corrosion resistance and toughness | All kinds of precision machinery, bearings, electrical equipment, household appliances, auto parts, etc. |
| 304(Ocr19Ni9) | G100-G1000 | Austenitic steel, hardness ≤28 degrees, non-magnetic, strong rust resistance, good corrosion resistance | Valves, perfume bottles, nail polish, baby bottles, auto parts, air conditioners and other household appliances |
| 316L(Ocr19Ni12Mo2) | G100-G1000 | Austenitic steel, most suitable for industries with high anti-corrosion requirements, hardness ≤28 degrees, non-magnetic, strong rust resistance | Valves, perfume bottles, medical equipment, nail polish, baby bottles, air conditioners and other household appliances |
| 201 | G100-G1000 | Austenitic steel, hardness ≤28 degrees, non-magnetic after demagnetization, not easy to rust when placed in water | Hardware accessories, household appliances, lamps, switches, die-casting parts, plastic products, etc. |
