Product Details:
|
| Material: | High Chrome Carbon Steel, 100CrSiMn6-4,GCr15SiMn | Grade: | G60 Or G40 |
|---|---|---|---|
| Hardness: | HRc 60-67 | Application: | Wind Turbine Bearing, Slewing Ring Bearing |
| Surface: | Smooth Surface And Polished Finish | Properties: | Good Size Stability And Anti-abrasion |
| Free Samples: | Can Be Supplied | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| High Light: | 59.94mm Chrome Steel Bearing Balls,60.06mm Chrome Steel Bearing Balls,G60 Hardened Steel Balls |
||

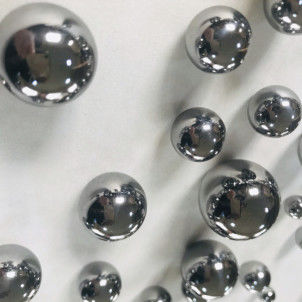

60.02mm(2-4/11"),59.94mm To 60.06mm, High Chrome Steel Balls For Big Bearing, G40 Or G60
Introduction
The full name of bearing steel is rolling bearing steel. It has high compressive strength and anti-fatigue performance, high hardness, high wear resistance and certain toughness, good hardenability, and extremely strict control of sulfur and phosphorus. It is a high-grade high-quality steel. Make cold work mold steel. Specific gravity: 7.81.
GCr15SiMn bearing steel has higher wear resistance and hardenability than GCr15, medium cold working plastic deformation, poor weldability, sensitive to white spot formation, and temper brittleness during heat treatment. Used to manufacture ferrules with wall thickness> 12mm and outer diameter ≥ 250mm; steel balls with a diameter of 50.8-203.2 and rollers with a diameter> 22mm; in addition, it can also be used as other mechanical parts that require high hardness and high wear resistance, such as rolls. Spiral gauge etc.
Chrome steel ball, as the main part of bearing, are being widely used on the application like automotive industry, automobile, instruments, heavy machinery, engineering machinery and rolling mill machinery. etc.
We mainly produce chromium steel with a size of 7-82.55mm. The main material is high chromium GCR15 or GCR15SiMn.
The ball has high precision, good surface smoothness, standard hardness and excellent wear resistance. Our products have been widely exported to Europe, America, Japan, Korea and so on.
Parameter
| Ball Diameter | Grade | Hardness | Material |
| 60.06mm(2.364567") | G40 or G60 | HRc 60-67 | GCr15SiMn,100CrSiMn6-4,SUJ3,52100 |
Product Details
| Product Name | High Quality Chrome Steel Balls |
| Size range | Ø 59.94 mm – Ø 60.06 mm(GCr15SiMn/SUJ3/100CrMn6 Chrome Steel Balls) |
| Quality grades | G40 or G60 for balls Ø59.94mm to 60.06mm |
| Hardness |
For 60mm group ball a minumun core hardness at centre of the ball shall be HRc55. minumun hardness at surface of the ball shall be HRc60. minumun hardness at depth of 15% ball diameter shall be HRc58. |
| Application | The High Quality Chrome Steel Balls are mainly applied in slewing ring bearing for wind turbines,such as single/double row ball bearing,single cross roller bearing,three roller bearing, double row angular contact ball bearing. |
Grade and Tolerance
| Precision / Grade |
Ball Diameter Tolerance |
Deviation from Spherical Form |
Maximun surface roughness |
Lot diameter variation |
| G40 | 1 | 1 | 0.06 | 2 |
| G60 | 1.5 | 1.5 | 0.08 | 3 |
Our services and advantages
1. High precision, high hardness, high speed.
2. Can be customized according to your needs.
3. Can provide small and non-standard balls.
4. Reasonable price.
5. Technology: low vibration, low noise, high precision and durability.
6. Our quality is higher at the same price, our price is lower at the same quality.
7. Our delivery time is shorter than other factories for the same qty of bearings.
8. We provide the best service. A good reputation has always been the advantage of our company.
