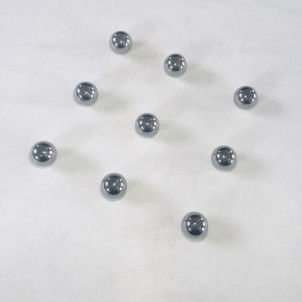

9.525mm 0.375" Small Steel Balls For Bearing Polished Surface

9.525mm(0.375"), G10, G16, G20, Chrome Steel Ball for also bearing, GCr15

Description

Chromium (Gcr15, 100Cr6, 52100, SUJ2) steel balls, also known as bearing steel balls. The high-precision chromium steel ball contains chromium and has excellent surface quality and high bearing capacity due to being quenched.

Throughout the manufacturing process, statistical process control can ensure tolerance accuracy, good surface finish and consistent high quality. It is most widely used in the ball and roller bearing industry and various automotive applications.

We mainly produce chromium steel with a size of 7-82.55mm, and the main material is high chromium GCR15 or GCR15SiMn. In particular, large-size, high-precision chrome steel balls from 25.4 mm to 82.55 mm are our main products. Mainly used for deep groove ball bearings, angular contact ball bearings, thrust ball bearings, hub bearings, linear bearings, wind turbine bearings and bearings.

In addition, the company has advanced production equipment and complete testing equipment, including low-speed cold heads, high-speed cold heads, flash evaporator, ball mill, grinder and heat treatment equipment. Through comprehensive testing technology, reliable product quality can be further ensured. It is tested by Rockwell instrument, electronic compression tester, optical microscope, metallographic microscope, appearance profiler, laser surface roughness tester, automatic appearance tester and steel ball vibration tester.

After more than 20 years of continuous efforts and development, our company has become one of the leading equipment suppliers in China and can provide high-precision steel balls with complete specifications. The steel ball has high precision, good surface smoothness, standard hardness and excellent wear resistance performance. Our products have been widely exported to Europe, America, Japan, Korea, Central Asia and Southeast Asia.

Precision bearing (chrome)steel ball

(1) Material:GCr15(DIN100Cr6,JIS SUJ2,AISI E52100,NF 100C6)
     Grade:G10-G40
     Diameter:7.9375mm-55mm

(2) Material: GCr15SiMn(JIS SUJ-3)
     Grade: G60-G100
     Diameter: 59.94mm-82.55mm

(3) Hardness: Less than 30mm is HRC62-67; 45mm, 50mm, 60mm group and 63mm group is HRC61-67; 76.2mm, 80mm, 82.55mm is HRC 57- 63 and 69.85mm is HRC59-65.

(4) Producing standards: GB/T308-2002

(5) Quality certificate: GB/T 308-2002---ISO 3290 etc.

(6) Be used in various bearing and engineering machinery.

(7) Advantage: high precision and high hardness, good quality, high appreciated.
