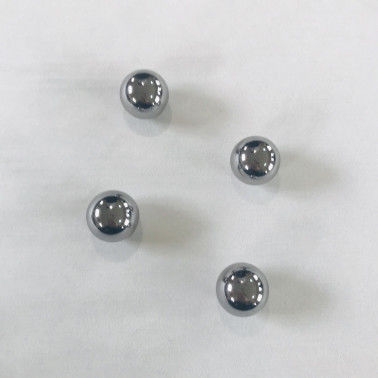

High Precision Polished Steel Balls HRc 62 - HRc 67 25.39mm Gcr15

25.39mm, custom-made, Gcr15 High Precision Chrome Steel Bearing Balls,HRc 62-67

Description

Good overall performance, cutting performance after spheroidizing annealing, high and uniform hardness after quenching and tempering, high wear resistance and contact fatigue strength, and good heat treatment performance. Contains more alloying elements, and the price is cheap. GCr15 steel is the most commonly used and produced high-carbon chromium bearing steel and is widely used worldwide. However, it has strong white point sensitivity, poor welding performance, high and uniform hardness and good wear resistance. It is used to manufacture small cross-section quenched and tempered parts with large load, and large standardized parts with small stress.

It can be used to manufacture various bearing rings with wall thickness ≤12mm and outer diameter ≤250mm; also for rolling elements with a wide range of sizes, such as steel balls, tapered rollers, cylindrical rollers, spherical rollers, needle rollers, etc.; It is also used to manufacture molds, precision measuring tools and other mechanical parts that require high wear resistance, high elastic limit and high contact fatigue strength.

The chromium balls are made of the highest quality chromium alloy steel and are quenched for maximum strength and service life. Ideal applications for chrome balls include rolling media, ball bearings, wind turbine bearings and linear motion components. The most widely used in various industries.

Bearing steel balls have a long history of use in the precision bearing industry and service life, and are more widely used. It can be said that in most places where there is rotation, there are steel balls, commonly known as steel balls and steel balls.

Our products enjoy high evaluation and satisfaction among customers. Most importantly, we can customize products to meet the various needs of customers. We are equipped with the most advanced production machines and testing instruments. With our sophisticated equipments, we can perform all the following processes on steel ball: roundness testing, vibration testing, random value detection, surface smoothness detection, Rockwell hardness testing, etc. According to customer requirements, steel balls can be produced according to Chinese standard GB/T 308, international standard ISO 3290, American standard ANSI/ABMA, German standard DIN, Japanese standard JIS B, etc.

GCr15 representation method

1. The two digits at the beginning of the steel number indicate the carbon content of the steel, expressed as two thousandths of the average carbon content.

2. Except for a few trace alloying elements, the main alloying elements in steel are usually expressed in percentages.

3. Alloying elements in steel, such as vanadium V, titanium Ti, aluminum Al, boron B, and rare earth Re, are all microalloying elements. Although the content is very low, it should still be marked on the steel.

4. High-quality steel should be marked with "A" at the end to distinguish it from ordinary high-quality steel.

5. Special purpose alloy structural steel, the steel number with (or suffix) symbol represents the purpose of the steel.

Attention point of GCr15

1. The residual copper content (melting analysis) of the steel for bearing steel pipes should not exceed 0.2%.

2. The oxygen content is measured on the billet or steel.

3. The sulfur content (melting analysis) of wire rod steel should not exceed 0.02%.

Precision bearing (chrome)steel ball
