Product Details:
|
| Material: | GCr15,52100,SUJ2,100Cr6 | Hardness: | HRc62-67 |
|---|---|---|---|
| Surface: | Lapping, Polished, Smooth | Grade: | G20 |
| Application: | Kinds Of Ball Bearings And Orther Equipment And Industries | Feature: | High Precision, High Hardness, Good Wear Resistance, No Breakage |
| Sample: | Free Provide For You | Tolerance: | Refers To Grade |
| Highlight: | 25.37mm 1 Inch Steel Ball,HRc 67 1 Inch Steel Ball,HRc 62 Chrome Steel Bearing Balls |
||

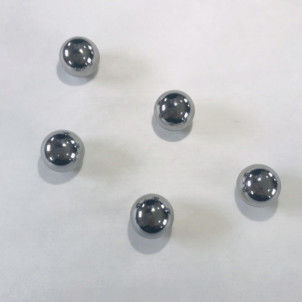

25.37mm(1") Gcr15 High Precision Chrome Steel Bearing Balls,HRc 62-67
Description
Chromium (GCr15, SUJ2, 52100, 100Cr6) is a universal material in a variety of applications, also known as bearing steel balls. It is a high-carbon chromium bearing steel with low alloy content and has good superior performance and excellent wear resistance, Deformation resistance, high load-bearing capacity and high contact fatigue performance after quenching and tempering.
The chromium balls are made of the highest quality chromium alloy steel and are quenched to achieve maximum strength and service life. Ideal applications for chrome balls include rolling media, ball bearings, wind turbine bearings, and linear motion components. The most widely used in various industries.
In addition to the standard size of 25.4mm (1"), we also produce non-standard size ranges, such as 25.37mm, 25.38mm, 25.39mm, 25.41mm, 25.42mm, 25.43mm and other materials such as stainless steel, chrome steel.
Our products enjoy high evaluation and satisfaction among customers. Most importantly, we can customize products to meet the various needs of customers. According to customer requirements, steel balls can be produced according to Chinese standard GB/T 308, international standard ISO 3290, American standard ANSI/ABMA, German standard DIN, Japanese standard JIS B, etc.
GCr15 representation method
1. The two digits at the beginning of the steel number indicate the carbon content of the steel, expressed as two thousandths of the average carbon content.
2. Except for a few trace alloying elements, the main alloying elements in steel are usually expressed in percentages.
3. Alloying elements in steel, such as vanadium V, titanium Ti, aluminum Al, boron B, and rare earth Re, are all microalloying elements. Although the content is very low, it should still be marked on the steel.
4. High-quality steel should be marked with "A" at the end to distinguish it from ordinary high-quality steel.
5. Special purpose alloy structural steel, the steel number with (or suffix) symbol represents the purpose of the steel.
Note of GCr15
1. The residual copper content (melting analysis) of the steel for bearing steel pipes should not exceed 0.2%.
2. The oxygen content is measured on the billet or steel.
3. The sulfur content (melting analysis) of wire rod steel should not exceed 0.02%.
Parameter
| Ball Diameter | Grade | Hardness | Material |
| 25.37mm to 25.43mm | G20 | HRc 62-67 | Gcr15(100Cr6,52100) |
Description of Production
| Size | 22.225mm,25.4mm,28.575mm,31.75mm,34.925mm,38.1mm,39.688mm |
| material | Gcr15,52100,100Cr6,SUJ2 |
| Precision | G3,G5,G10,G16,G20,G28,G40,G60,G100 |
| Application | automobile, electric machine, ball bearing and also bearing |
| Details | Deep groove ball bearings are most widely used and is the largest production, most widely used of a kind of bearings. It is mainly used to bear radial load, but also bear certain axial load. When the radial clearance of the bearing increases, the function of the angular contact bearing can withstand larger axial loads. |
| Special properties | 1. High accuracy |
| 2. smooth surface | |
| 3. high hardness | |
| 4. Can be customized according to your needs | |
| 5. Can provide small and big size standard and non-standard steel ball. | |
| Service | OEM & ODM service |
| Delivery date | Normal have in stock within one week can be shipped. |
| Package | Plastic bag+ cardon box+ wooden pallet. or according to buyers' requirement |
| Payment terms | A:100% TT |
| B: 30% T/T in advance .70% against copy of B/L | |
| C: 30% T/T in advance .70% against L/C at sight | |
| D: Western union |
