Product Details:
|
| Steel: | Alloy Steel,chrome Steel,high Carbon Steel, 100Cr6, SUJ2 | Grade: | High Precision G40 |
|---|---|---|---|
| Hardness: | HRc61-67 | Appearance: | Smooth, Bright, No Visible Flaws, High Quality |
| Use: | Ball Bearing, Slewing Ring Bearing, Precision Instruments | Standard: | DIN, ASTM, AISI, JIS, AFN |
| Characteristic: | High Precision, High Hardness,finest Quality | Free Sample: | Supply For You |
| High Light: | HRc61 Chrome Steel Bearing Balls,39.688mm Chrome Steel Bearing Balls,39.688mm Gcr15 Bearing Ball |
||

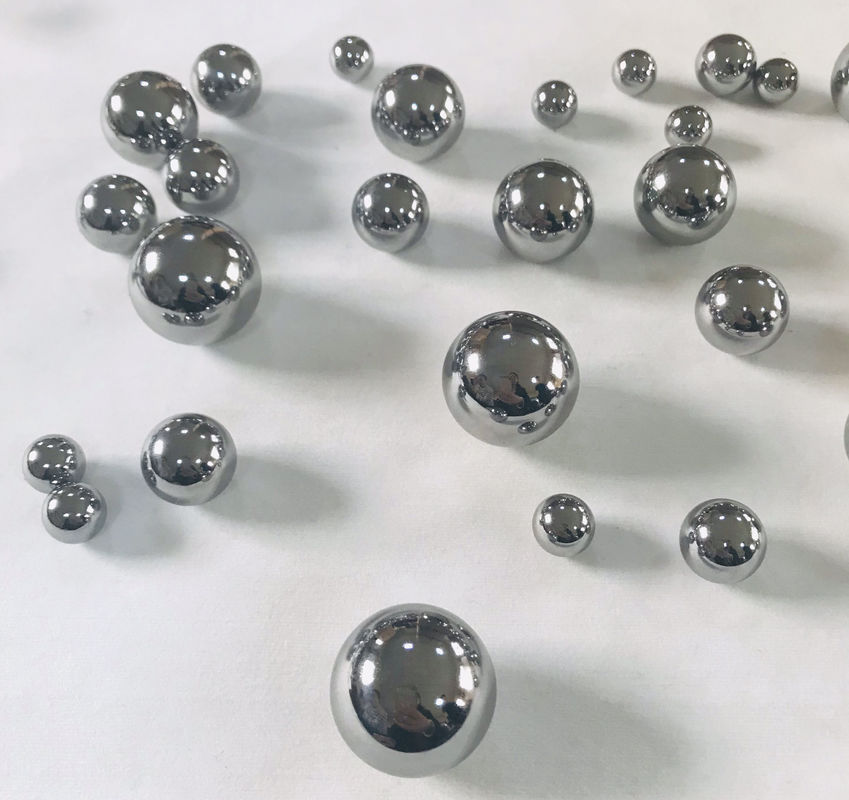

39.688mm Gcr15, SUJ2 Grade 40, High Precision Steel Ball For Bearing
Brief Introduction
Metal (Gcr15,100Cr6,52100,SUJ2) steel balls, also called bearing steel balls,High precision chrome (high carbon) steel balls contain chromium.They offer superior wear resistance, high hardness and high load bearing capacity as a result of through-hardening.
The finest quality chrome steel produced in accordance with the highest industry standards. These high precision G40 ball bearings are hot forged from bar stock. Modern furnaces with precisely controlled atmospheres and temperatures are used for heat treating to assure uniform hardness and proper microstructure for each Stainless steel ball.
Chrome balls are manufactured from the highest quality chrome alloy steel and through-hardened for maximum strength and service life. Applications that are ideal for chrome balls include tumbling media, ball bearings,Wind Turbine Bearing, linear motion components.most widely used in various industires.
Properties
Although these chromium steel balls have good rust resistance, but it is recommended to use a dry cloth to wipe clean after use and apply a layer of oil, so that they have better rust resistance, to extend their service life.
Besides the size of 39.6875mm, we make non-standard size, from 39.588mm to 39.80mm, such as grade and precision are met the requirements.
Service
After precision cleaning, oiling & before packing sample balls from the batch are sent for final inspect to check for surface roughness, roundness, waviness, lot size variation and hardness, according to specified control plans and inspection procedures. Inspection report is prepared for the customer once all requirements are met.
Our products enjoy a highly appreciated and satisfiied among our customers. Most importantly, we can customize our products to suit various needs of our customers. Based on customer’s requirement, the steel balls could be produced according to China Standard GB/T 308, International Standard ISO 3290, America Standard ANSI/ABMA, Germany Standard DIN, Japan Standard JIS B etc.
Main Detailed Production
| Size |
39.588mm--39.80mm(1-5/9"--1-4/7") |
| Material | Gcr15,52100,100Cr6,SUJ2 |
| Grade | G40 |
| Application | high-speed and low-noise bearings, slide rails, universal balls |
| Details |
Wheel hub bearing is one of the key parts of automobile. The main role of wheel hub bearing is to carry the weight and provide accurate guidance for the rotation of the wheel hub. Thus, wheel hub bearings need to bear both axial and radial load. At present, wheel hub bearings have been developed to the fourth generation of wheel hub bearing units which simplifiy the installation structure with easy installation, bearing clearance could be adjusted, small pre-load error, high reliable and so on. |
| Special properties | 1. High accuracy |
| 2. gloosy surface | |
| 3. high hardness | |
| 4. tolerance range is small | |
| 5. Can provide small and big size standard and non-standard steel ball. | |
| Service | OEM & ODM service |
| Delivery date | Normal have in stock within one week can be shipped. |
| Package | Plastic bag+ cardon box+ wooden pallet. or according to buyers' requirement |
| Payment terms | A:100% TT |
| B: 30% T/T in advance .70% against copy of B/L | |
| C: 30% T/T in advance .70% against L/C at sight | |
| D: Western union |
